Wednesday, February 28, 2018

On Age DE's pathing/movement

Typical Age DE forum post:
The pathfinding in the game is terrible.
First off, Age of Empires Definitive Edition is a remaster of Age of Empires. It's not a rewrite, it's not a new engine, and that's what we've been saying for almost a year. Age of Empires 1's path finding was really bad, as most reviews point out:
This is the code we started with in DE. Not Age 2, not new code, but the original code which had a ton of flaws and quirks we had to learn about the hard way. This code was almost a quarter of a century old, and it showed. The original movement/pathing code was very weak to say the least. Yet entire complex systems above it (combat, AI, etc.) depended on this super quirky movement/pathing code. It took multiple Ensemble engineers several years of development to go from Age 1 to Age 2 level pathing.
We made a number of improvements to the path finding and unit movement code without breaking the original system. It must be emphasized that Age1's pather and movement code is extremely tricky and hard to change without breaking a hundred things about the game or AI (sometimes in subtle ways). It was a very tricky balance. The current system still has problems with chokepoints, which can be fixed with more work, but we instead had to focus on multiplayer which had to basically be 85% rewritten.
Here's a list of fixes made so far to DE's pathing and movement code in the time I had, which was only like 2 months:
  • DE's pathing system's findPath() function was speeded up by approx 3-4x faster vs. Age1's
    I performed around a dozen separate optimizations passes on the core pather. I implemented the A* early exploration optimization (eliminating 1 open list insertion/removal per iteration), and massively tuned the C++ code to generate reasonably efficient x64 assembly. I transformed the inner loops so much that they barely resemble the original code. We retested the pather and game thoroughly after each major optimization pass.
  • Age1's pather's A* implementation was outright broken (the open list management was flawed, so the cheapest node wasn't always expanded upon during each iteration). DE's pather fixes all these bugs and is a proper implementation of A*. (I have no idea how the original code shipped, but it was 1997!)
  • DE's pather gives up if after many thousands of iterations it can't make forward progress towards the goal, to avoid spending CPU cycles on hopeless pathing unnecessarily. (It's more complex than this, but that's the gist of it.)
  • Added multiple lane support to villager pathing.
  • Villagers can use one of two collision sizes (either small or large), so if a villager bumps into another friendly villager we can immediately switch to the smaller radius to avoid stopping. So basically, villagers can get very close to each other, avoiding gathering slowdowns. Villager vs. military combat was preserved because vills use large radii by default, and if a vill vs. vill collision doesn't occur after a set period of time the villager returns back to the large radius. (An unfortunate side effect of this: It's possible to group together a ton of villagers - way more than the original game - and use them to attack other units. Villager Mobs are a game unbalancing issue in DE.) Note that another engineer (not associated with FE) attempted to "fix" villagers by allowing them to collide/overlap and totally broke the entire game, and that code did not and could not ship because it broke the engine's assumptions in multiple ways.
  • Movement of units through single-tile openings was greatly improved and tested with all unit types. Age 1's handling of single tile openings was so bad that players would exploit it:
  • The DE pather was modified to have a much higher max iteration count than Age1's, so longer and more complex routes can be found.
  • The per-turn pathing cap in Age1 was switched to short and long range pathing categories in DE. 8 short range paths can occur per turn, and for long range paths it supports up to 4 findPaths() per turn.
  • For short range paths, straight line paths are preferred vs. the tile path returned by findPath() if the straight line path is safe to traverse.
  • Boat movement was modified to have deceleration.
  • Waypoints along a path can be skipped if a unit can safely move from its current position to the next waypoint
  • Added support for 32-facing angles vs. Age's original 8. Also, the unit direction/facing angle is interpolated in DE, instead of "snapped" to like in Age1. The interpolation is purposely disabled when units switch angles during combat.
  • Added stuck unit detection logic to DE's movement code, to automatically detect and fix permanently stuck units (rare, but possible).
  • We ported Age2's entire obstruction manager into DE, replacing the old bitmap system. Units use circular obstructions, and buildings use square obstructions.
  • Added several new behaviors to the movement code to help with chokepoints: A "wait" behavior, that checks every second or so for up to 45 seconds to see if the unit can be moved to the destination, and a stuck unit "watchdog", which watches to see if a unit hasn't made forward progress and tries to switch behaviors to get the unit unstuck. Age1's code would just give up at the slightest problem.
  • The pather tries to path starting from the center of each tile, but this sometimes fails in tight spaces or with lots of units around. DE tries harder to find a good starting position, so movement through single tile openings isn't broken.
  • Path caching system: Villagers and boats can reuse previously found paths in DE, for efficiency.
  • In situations that Age1's pather would just outright give up and stop, DE's pather tries a lot harder to get the unit where it needs to go using several randomized fallback behaviors.
  • Age1's waypoint detection code was very janky and fixed in DE. Age1's code would sometimes cause units to oscillate around their current waypoint until it figured out it was ok to go to the next one.

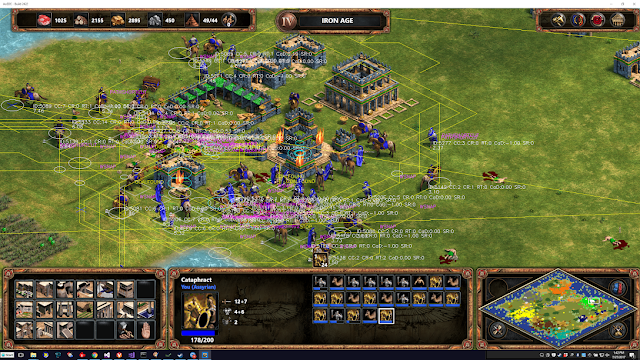

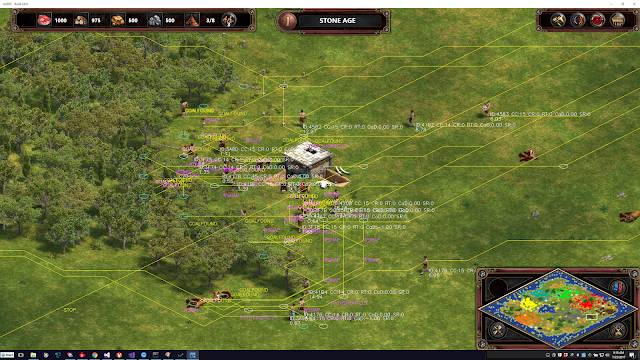

  • The original Age1 devs used text log files to debug the pather/movement systems. I had to write a 2D/3D debug primitive system so I could see what was actually going on. Here are some development screenshots - notice how complex this stuff is:

Age1's pathing/movement systems implements a form of randomized, emergent behavior. The units are basically like dumb ants. It's imperfect in chokepoints, but it's a continuation of the essence of what made Age 1 what it was. If all the units are moving in the same direction it can usually handle chokepoints (I tested this over and over with a wide variety of units on a pathing torture test scenario from MS before release). The fundamental behaviors the AI and combat systems expected were accurately preserved in DE's pather, which was our goal.
Instead of people saying "the pathing in DE sucks!", I would much rather hear about the specific issues with movement/pathing, and actually constructive suggestions on how to improve the system without breaking the game or turning it into Age 2.

Wednesday, February 21, 2018

Age DE's latency matrix

Getting the netcode to work reliably in a peer to peer multiplayer title is tricky. Every peer must be able to quickly and reliably send and receive packets with every other peer, or the whole thing falls apart. Also, if any machine runs a turn slower than expected for any reason, the entire system will hitch while waiting for the slow peer to catch up. DE constantly monitors the pings and framerates of all connections and machines in a MP game, but it can only compensate so much for bad connections.

In DE's game lobby there's a 2D matrix of blocks that shows the systemwide roundtrip latencies between all players (circled in red):

Once you're in a lobby, the game's peer to peer multiplayer code (parts of which date back to the original game) is active, and your machine is actively communicating with all the other machines. Every 4 seconds your machine pings all the other clients, the results are sent to the host, and every few seconds the host then sends the entire matrix to all peers.

For each row of this matrix, the latency to all the other players is visualized. So the first block on row 2 represents the latency from player 2 to player 1, and the third block on row 2 is the latency from player 2 to player 3, etc. Grey means no response (yet), green is <200ms ping, yellow is <=400ms, and red is >400ms. The game won't start if there are any grey blocks (even in "dedicated server" mode). The ping matrix is not necessarily symmetrical, but usually is.

If a block has a thin blue rectangle around it, that means that client has to use a TURN server relay to get its packets to the other client due to NAT traversal issues. This means extra overhead.

The latencies visualized here are low pass filtered over approx. 8 pings.

The "Ping" column shows the local roundtrip latencies to the other clients. Each player will have its own unique column of values. Apart from maybe the host, I think this column is kind of useless, because it's only showing local latencies. It would have been better if it displayed each player's worst latency.

This matrix is used to compute the turntimes used during the actual game. I believe all peer to peer titles should display something like this, to help players quickly see at a glance how healthy the connections are between peers.

Wednesday, February 14, 2018

Lessons learned while developing Age of Empires 1 Definitive Edition

In late 2016 I began helping Forgotten Empires on Age 1 DE, a UWP app shipping in the Windows Store on Feb 20th. I only helped occasionally for the first couple months or so (because I was working on Basis and an aerospace project), but as the title got closer to shipping I spent more and more of my time working on Age problems. We started with the original 20 year old Age 1 codebase. Here are some of the things I've learned:

1. Get networking and multiplayer working early.
DE supports both traditional peer to peer (with optional TURN server relaying to handle problematic NAT routers), and a new client-server like mode ("host command forwarding") where all clients send their commands to the host which are then forwarded to the other clients. Age 1 uses a lockstep simulation model, except for most AI code which is only executed on the host (see here).

Do not underestimate the complexity of lockstep peer to peer RTS multiplayer games. If possible, choose an already debugged/shipped low-level networking library so you can focus on higher-level game-specific networking problems.

If you do use an off the shelf network library, test it thoroughly to help build a mental model of how it actually works (vs. how you think it works or how it's supposed to work). Develop a test app you can send the library developers to reproduce problems. If the library supports reliable in-order messaging then (at the minimum) put sequence numbers in all of your packets and assert if the library drops, reorders or duplicates packets in case there are bugs in the reliable layer.

For debugging purposes make sure all timeouts can be increased by a factor of 10x or whatever. Sometimes, debugging real-time network code is impossible in the debugger (because it inserts long pauses), so be prepared to do a lot of printf()-style debugging on multiple machines.

If you're taking an old codebase and changing it to use a new networking library or API, try to (at first) minimize the amount of changes you make to the original code. No matter how ugly it is, the original code worked, was bug fixed and shipped, and don't underestimate the value of this.

If you develop your own reliable messaging system, develop a network simulator testbed (which simulates packet loss, etc.) to automate the validation of this layer whenever it's modified and always keep it working.

Trust nothing and verify everything at multiple levels. CRC your packets, CRC the uncompressed data if you use packet compression, use session nonces in your connection-oriented layer to validate connections, validate that your reliable layer is actually reliable, etc. Make sure the initial connection process is well defined and completely understood. Everything needs timeouts of some sort and when sending unreliable messages any packet can get lost. Gaffer on Games is a great guide to this domain of problems.

Getting the game to run smoothly with X random machines across a variety of network conditions is difficult. Plan on spending a lot of time tuning the system which controls the game's turntime (command latency and sim tick rate). There are multiple sources of MP hitches (which players hate): Turntime too low (so one or more machines can't keep up with the faster ones), random CPU spikes caused by AI/pathing/etc., reliable messaging retransmit delays, random client latency spikes, AI's sending too much command data, etc. Develop strong tools to track these problems down when they occur in the field and not in your test lab.

Add cheat commands to the game to help simulate a wide range of various networking and framerate conditions.

If you send unreliable ping/pong packets to measure roundtrip client latency, filter the results because some routers are quite noisy. The statistics that go into computing the sim tick rate and turntimes should be well filtered.

Establishing the initial connections between two random machines behind NAT's is still a challenging problem - test this early.

Identify your most important packets and consider adding some form of forward error correction to them to help insulate the system from packet loss. In lockstep designs like Age, the ALL_DONE packets sent by each client to every other client to indicate end of turn are the most important and currently sent twice for redundancy. (Excluding AI's, there are no commands from the player on most turns!)

Internal testing doesn't mean much. You must have MP betas to discover the real problems. It seems virtually impossible to simulate network conditions as they occur in the wild, or the game running on customer machines.  Make sure you get valuable test data back from MP betas to help diagnose problems.

Age DE's reliable messaging system is based on Brownlow's "A Reliable Messaging Protocol" in GPG 5. This is an elegant and simple NACK-based reliable protocol, except the retransmit method described in the article is not powerful enough and is sensitive to network latency (supporting only 1 packet retransmit request per roundtrip). We had to modify the system to support retransmit packets containing 64-bit bitmasks indicating which speciific packets needed to be resent.

2. Develop strong out of sync (OOS) detection tools early, and learn how to use them.
As a lockstep RTS codebase is modified you will introduce many mysterious and horrifying OOS problems. Don't let them smolder in the codebase, fix them early and fix new ones ASAP.

Functions which are not safe to use in the lockstep simulation should be marked as much. We had an accessor function which returned true if the entire map was visible, which got accidentally used in some code to determine if a building could be placed at a location. This caused OOS's whenever the user resigned (which locally exposes the entire map) and another client built walls. This little OOS took 2 days to track down.

If you are getting mysterious OOS's, you need to identify the initial cause of divergence and fix that, then repeat the OOS debugging process until no more divergences remain. Don't waste time looking at downstream effects (such as out of sync random number generators) - identify and fix that first divergence.

In Age, the original developers logged virtually everything they could in the lockstep sim. Some important events (such as where objects were being created) were left out, so we had to add unique "origin" parameters to all object creations so we knew where in the code objects were being created.

3. Do not underestimate the complexity and depth of UWP and Xbox Live development.
Your team will need at least 1-2 developers who live and breathe these platforms. These individuals are rare so you'll just have to bite the bullet and make an investment into these technologies.

4. Develop clean and defensive coding practices early on. Use static analysis, use debug heaps, pay attention to warnings, etc. Being sloppy here will increase your OOS rate and cause player and developer pain. Be smart and use every tool at your disposal.

5. Do not disable or break "old" logging code. Make sure it always compiles.
This logging code is invaluable for tracking down mysterious/rare problems and OOS's. The original developers put all this logging code in there for a reason..

6. Add debug primitives if the engine doesn't have any
This is a basic quality of life thing: You need the ability to efficiently render 2D text, debug primitives in the world, etc. If the engine doesn't support them then get them in early.

7. Profile early and make major engine architectural decisions based off actual performance metrics.
If your new renderer design relies on a specific way of rendering the game in a non-mainstream manner, then verify that your design will actually work in a prototype before betting the farm on it. Be willing to pivot to an alternate renderer design with better performance if your initial design is too slow.

Get perf. up early: Lockstep RTS multiplayer games can only tick the simulation at the rate of the slowest machine in the game. So if one machine is a dog and can only handle 20Hz, the game will feel choppy for everyone. Other major sources of perf problems like pathing or AI spikes will be obscured if rendering is running slow.

8. Figure out early on how to split up a singled threaded engine to be multithreaded.
Constraining an RTS to live on only a single thread is a recipe for performance disaster, especially if you are massively increasing the max map size and pop caps vs. the original title.

9. Many RTS systems rely on emergent behavior and are interdependent.
If you modify one of these systems, you MUST test the hell out of it before committing, and then be prepared to deal with the unpredictable downstream effects.

For example, modifying the movement code in subtle ways can break the AI, or cause it to behave suboptimally. The movement code in Age1 DE is like Starcraft's: an unholy mess. To be successful modifying code like this you must deeply understand the game and the entire system's emergent behavior.

Carelessly hacking the movement or path finding code in an RTS is akin to hacking the kernel in an OS: expect chaos.

10. Automated regression testing
The more you automate and objectify testing of movement, AI, etc. the happier your life will be and the easier you will sleep at night.

11. Playtest constantly and with enough variety
It's not enough to just play against AI's on the same map over and over. Vary it up to exercise different codepaths. You MUST playtest constantly to understand the true state of the title.

12. Assume the original developers knew what they were doing.
The old code shipped and was successful. If you don't understand it, most likely the problem is you, not the code.

For example, Age 1's original movement system has some weird code to accelerate objects as they moved downhill. This code didn't have a max velocity cap, so on very long hills units could move very quickly. We resisted modifying this code because it turns out it's a subtle but important aspect of combat on hills.

13. Don't waste time developing new templated containers and switching the engine to use them, but do reformat and clean up the old code.
Nobody will have the time to figure out your new fancy custom container classes, they'll just use std because we all know how they work.

Instead, spend that time making the old code readable so it can be enhanced without the developers going crazy trying to understand it: fix its formatting, add "m_" prefixes, etc.
