vogl Windows port, new regression test system, new vogl_chroot repo

Windows Port Progress

John McDonald has officially begun the Windows port of vogl. The voglcore lib and voglgen (our code generator tool) are now running on Windows as of this morning!

New Regression Test System

vogl has a shiny new tracing/replaying/trimming regression and smoke test system written by Mike Sartain that runs the following steps on a library of traces:

• Plays back either an apitrace or a vogl trace, captures its output using the libvogltrace SO, and records the backbuffer CRC's (or per-component checksums on traces with multisampling) to a text file.
• Plays back this trace and diffs the backbuffer CRC's vs. the CRC's seen during tracing.
• Finally, we trim the test trace, then play back the trimmed trace and compare the backbuffer CRC's vs. the original trace's CRC's. Trimming involves playing back the test trace up to a predetermined point, capturing the entire GL state vector to memory and serializing it out, so we get a lot of good coverage in this step.

The system is located in the test directory of vogl's chroot repository, here. The script that runs the test is run_tests.sh. (This little script actually compiles and launches a small .C file that contains the entire test system.) The file tests.json configures which traces are tested and the parameters to the various test steps.

Currently, only our smallest traces (from the g-truc 3.x suite) are pushed up to vogl_chroot. We also have many GB's of game traces (please drop me a message if you would like these traces). It's pretty easy to add your own traces - I'll be documenting how on vogl's wiki this afternoon.

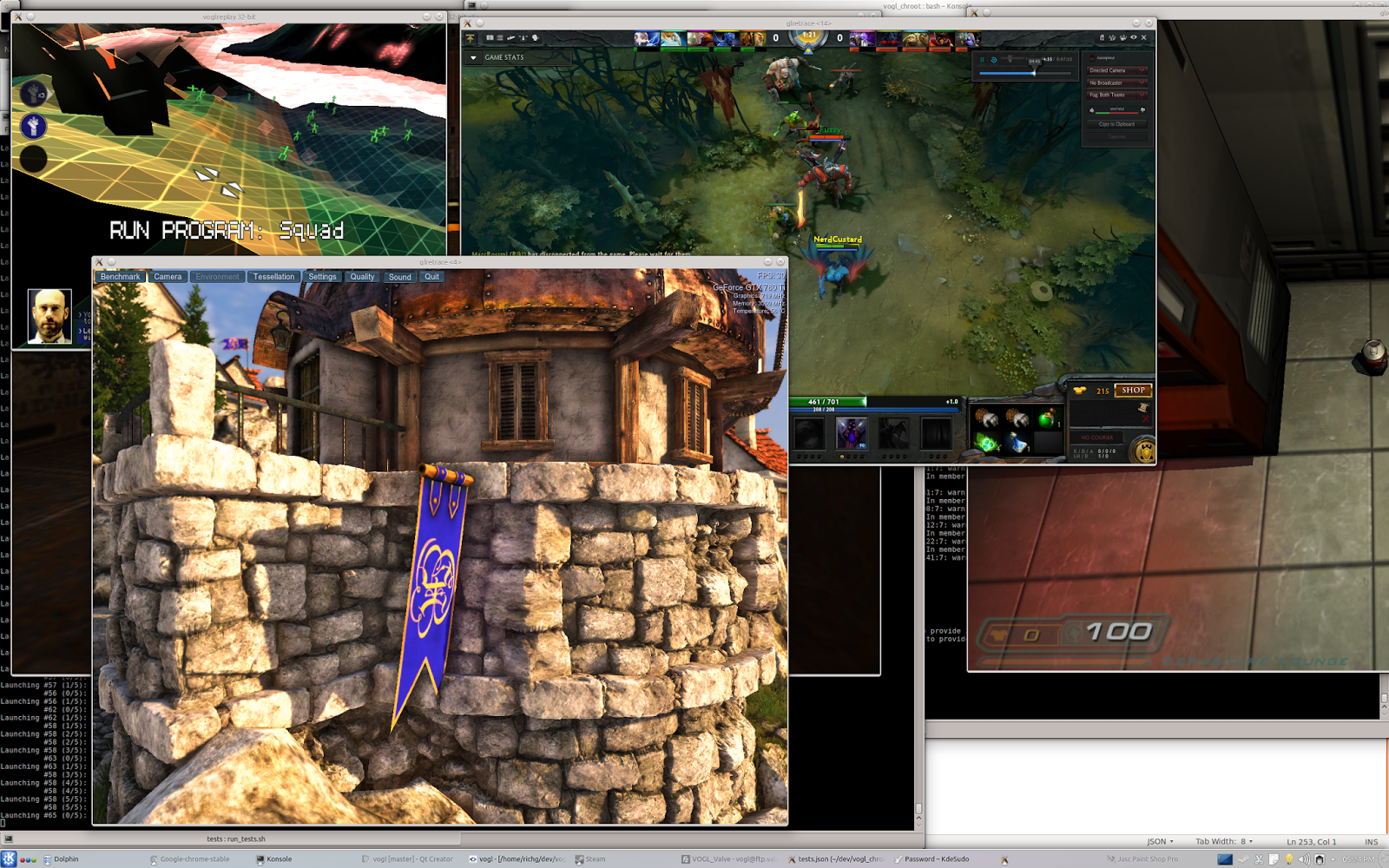

Here are some shots of it in action on our dual Xeon (20 core/40 HW thread) test machine, using "/run_tests.sh -j 6" - to spawn up to 6 parallel processes at a time vs. the default 4:

Interestingly, the limiting scaling factor on this system seems to primarily be GPU video memory, not raw CPU or GPU performance. Metro Last Light, TF2, and DotA2 each can use ~1 GB of VRAM (and we only have a 3GB 780 Ti on this system). We don't try to order the trace replay order in any particular way to optimize overall throughput, which would be a nice addition.

vogl_src and vogl_chroot repos

Thanks to Carl Worth (Intel OTC) and Sir Anthony for submitting some patches to help us break up the previously huge vogl repo into two smaller repos. The primary one on github contains only the (buildable) source:

https://github.com/ValveSoftware/vogl

And vogl_chroot is the optional portion we use internally to simplify building and testing vogl:

https://bitbucket.org/raddebugger/vogl_chroot

You don't strictly need vogl_chroot, but beware you'll need to manually figure out the build dependencies if you don't. Building both 32-bit and 64-bit vogl without using the chroot approach can be a huge pain due to sometimes unresolvable/obscure i386 vs. amd64 system dependency issues. (If you disagree, I claim you haven't tried to actually do it. And no, gcc-multilib is not enough.)

Next Steps

We've been supplied with more test traces from various teams working on titles that will be released later this year on Steam Linux. (Hey - if you're working on a new GL game or port, feel free to send us more traces!) Also, Rad Game Tools just provided us with a fresh drop of Bink video, which now supports using compute shaders to massively accelerate video decoding. I'll be adding support for its GL 4.x callstream next week.

vogl support for Unreal Engine 4

We're extremely excited that Epic is porting Unreal Engine 4 to Linux -- see the official announcement or some press here and here. Once we heard UE4 Linux was coming we pretty much dropped everything to ensure vogl can handle UE4 callstreams. The latest code on github now supports full-stream tracing/replaying and trimming of UE4 callstreams in either GL3 or GL4 mode. UI support for UE4 is still in the early stages, but now that we can snapshot/restore UE4 and continue to play back the callstream without diverging it's only matter of time before the UI comes up to speed.

UE4's OpenGL renderer is the most advanced we've worked with so far. It has provided us with valuable real-world test cases for several modern GPU features we've not had traces to validate our code against, such as compute shaders and cubemap arrays. We'll be making UE4 GL callstreams part of our regression test suite going forward.

Here are some shots of a trace of UE4's test game being replayed in voglreplay64's --interactive mode (which relies on state snapshotting/restoring):

Here's a trimmed trace loaded in the editor:

Known problems:

• UI: Peter Lohrmann just added a dropdown that lets you select which context's state to view. This code is hot off the presses and is a bit fiddly at the moment. Also, UE4 uses several texture formats that the vogl UI can't display right now (LunarG is helping us fix this, see below.)
• Snapshotting UE4 during tracing is currently unsupported (but snapshotting during replaying works), because the tracer can't snapshot state while any buffers are mapped. (We also have this problem with the Steam Big Picture renderer.) We have a fix in the works.
• We're seeing several query related warnings/errors while snapshotting and replaying UE4 callstreams. (This problem is in vogl's replayer, not UE4.) These need to be investigated, but they don't seem to cause the replayer to diverge.
• There are several "zombie" buffer objects that have been deleted on one context but remain bound on another, which causes the snapshot system to report handle remapping errors on these objects during snapshotting. These buffers don't appear to be actually referenced after they are deleted, so this doesn't cause the replay to diverge. We've got some ideas on how to improve vogl's handling of this scenario (which is unfortunately very easy to do by accident in GL).

Other news:

LunarG has provided us with the first drop of their universal OpenGL texture format converter/transformer module, which will be going open source soon. This module allows us to convert any type of OpenGL/KTX texture data to various canonical formats (such as 8-bit or float RGBA) in a driver independent manner, with the optional transforms we need to build a good texture/framebuffer viewer UI. The current vogl UI uses some temporary and very incomplete stand-in code to convert textures to formats Qt accepts, so we're really looking forward to switching to LunarG's solution.

Finally, John McDonald recently joined Valve and the SteamOS team and is currently getting up to speed on the vogl codebase.

couple vogl debugger/editor UI screenshots

vogl's UI (being worked on by Peter Lohrmann) has come far in the past month. I used it today while debugging what seemed to be a replay bug in Xonotic (reported by a dev named blackout24 on github). I first trimmed a single frame that clearly showed the problem, then played back this trimmed trace in a endless loop to verify the issue still showed up in the trim. I manually trimmed the source trace using voglreplay64, but I think initial support for doing all this directly from the UI just went in.

The UI helped me quickly pinpoint the first draw affected by the rendering problem. I then drilled down and examined all the GL state, textures, shaders, etc. on and around this draw. Clicking on a GL command that already had a snapshot was fast, only around a second in debug, and around 3-4 seconds on commands without snapshots. I still dumped the trimmed trace to JSON+loose files, more out of habit than anything, but using the UI was much faster than doing things the old way (which involved dumping massive amounts of PNG's on each major event, then using voglreplay -find and/or grep on huge JSON files).

Here's the pinpointed draw showing the problem (a completely opaque foliage billboard that should have been rendered transparently):

Depth and stencil buffers are currently displayed by mapping their individual bytes directly to image components - we're working on that.

Here's the foliage texture. I enabled alpha blending in the UI to double check the texture's alpha channel was reasonable:

Xonotic replay showing the problem, with the powerful QtCreator IDE in the background:

Turns out the problem was caused by Xonotic's usage of alpha to coverage on a multisampled default framebuffer. We don't currently support automatically enabling multisampling on default framebuffers during replaying. (We do of course support MSAA renderbuffers/textures/FBO's, but not on the default framebuffer yet.)

For now, I added a "-msaa X" command line option to the replayer to enable MSAA on the default framebuffer until we address this. This is crappy, but the vast majority of GL apps just don't enable MSAA this way and we have bigger fish to fry at the moment. (Also, I don't want to touch vogl's GLX/X-Windows related code until we abstract it away into SDL or something.)

vogl's tracer/replayer now supports the Steam Linux client

Steam's Big Picture mode is one of the last remaining Valve OpenGL apps that vogl didn't support until now. (The desktop client's GL callstream has worked for months.) The fixes for Big Picture are now all pushed to our github repo.

Here's a Big Picture ("10ft") replay in interactive mode after pausing (which involves a full state snapshot, context teardown, and state restore) and continuing playback:

Replaying 10ft traces on NVidia technically works, but there's a driver bug that is causing playback to be extremely slow on my box (that NVidia is checking out). So all tracing and replaying in these shots was done on a AMD 57xx series part using the closed source fglrx driver.

The desktop ("2ft") GL callstream is looking good too, but compared to 10ft I have hardly spent any time looking at it. (I used the "-lock_window_dimensions -width 2560 -height 1600" cmd line options to replay this trace for 10ft, so the window is much bigger than needed for 2ft):

There are some known remaining issues, none of them show stoppers for debugging purposes. I'll be adding this trace to our shiny new regression test system Mike Sartain is working on soon.

- The replayer's auto window resize logic is almost useless on Steam traces because it creates so many trampoline contexts (associated with tiny windows) during startup and mode changes. So you must currently replay using "-lock_window_dimensions -width X -height Y".

- Can't make single/multi-frame snapshots of 10ft during tracing, only replaying. This isn't a big deal, because you can make a full-stream trace and just trim the frames you want to look at.

This problem is caused by the 10ft renderer keeping several buffers mapped all the time. I have a safe and easy fix coming that might address this issue (but it'll only work when the app keeps the entire buffer mapped).

- Can only debug 10ft on AMD until the NVidia driver bug is fixed

- The UI has not been tested on 10ft traces yet. Peter Lohrmann just added better support for debugging traces containing multiple contexts (specifically to help 10ft debugging along) which I'll try soon.

- The 10ft renderer deletes textures while they are still bound to FBO's (and keeps the FBO's around)

This causes various problems for the snapshot code because it can't retrieve the texture attachment handles in these FBO's (we just get 0's for the GL_FRAMEBUFFER_ATTACHMENT_OBJECT_NAME), and (the last time I checked) we can't reliably retrieve information on these deleted textures on all drivers. This seems to be a very rare pattern (that I've never seen in any game titles, just 10ft). After asking around it turns out this problem is not a showstopper for 10ft because it always rebinds a new texture to the same attachment point before it ever renders to the FBO again.

All that red text in the below screenshot is due to this issue, but the output should still be correct.

You don't need to do anything special to trace steam:

./trace.sh /usr/bin/steam

trace.sh is our example tracing script, see here. The example script causes the tracer to wait for a keypress, but you may not see the "waiting for keypress" message - just press any key if the app appears to stop.

Trying SmartGitHg build v6 preview 4

We've been using Mercurial+TortoiseHg for the previous year (with hosting on Bitbucket), but the open source mainstream uses git so we're now switching vogl over to it exclusively. I gather most Linux devs primarily use command line tools, which is fine and all (I obviously do too when needed) but I want to find good GUI's for this stuff. The last time I had to use CLI tools for version control was 1997 under DOS.

There's an added bonus to being obstinate and pushing to find and use good native Linux GUI's for our major devtools: devs porting from the Windows/OSX/console worlds already have huge piles of solid GUI-based tools, and we need to find reasonably competitive native Linux alternatives. (When I say "native", I mean "not under Wine". I use Wine every day to run some old non-critical Windows programs I just can't find Linux alternatives for that I like, such as the Boxer Text Editor and Paint Shop Pro. Wine seems to run older Win32 apps better than Windows 7/8 itself these days!)

So I'm on the lookout for a git UI that is at least as good as TortoiseHg for doing the basics. I found a good Visual Studio alternative (QtCreator) a year ago after a wide search involving around a half dozen other Linux IDE's. I knew QtCreator was a good product after using its debugger for 20 minutes. It's by no means perfect but I've not had to use gdb/cgdb once since switching to it.

SmartGitHg has been on my radar, so I'm trying it out. It's commercial but has a 30 day trial (and is free for non-commercial use). This thing could be unusable -- I have no idea yet.

http://www.syntevo.com/smartgithg/early-access

It needs openjdk-7-jre to run, which I installed first using the Muon package manager (under Ubuntu 13.10+KDE). The UI seems more complex, but cleaner, than TortoiseHg's. If you're already familiar with Mercurial/thg it seems pretty easy to map over the concepts and accomplish the basics. I just pushed a trivial change up using it (added a link to the vogl wiki). I'll keep trying UI's if necessary until something works for 90% of the things devs do (add files, check in, push, pull, merge, resolve conflicts, browse history, etc).

Completed another round of testing on AMD's (fglrx) driver

I fixed a number of issues specific to AMD's driver - changelist notes are here. Mike should hopefully push these changes to github out tonight or tomorrow latest. (3/15: These changes are live on github - thanks Mike!)

Here's Dota2 replaying on fglrx in -interactive mode. Also, our regression test suite is now working (for the first time!) on AMD, which is pretty exciting.

The GL API callstream involved is hairy - it's kinda amazing that it works at all:

- I traced Dota2 using apitrace on an NVidia 780 to a .trace file
- I played this back on AMD's fglrx using glretrace, then intercepted its output using libvogltrace to a vogl .bin trace file
- I then play this new trace using voglreplay. The regression test suite verifies that the backbuffer CRC's seen during tracing vs. replaying are the same (we've failed if not).

So we're mixing two different drivers and tracing/replaying frameworks in this test. The yellow warnings in the screenshot below are caused by missing uniforms, which are optimized differently by the AMD driver's compiler vs. NVidia (so some program uniforms are missing on AMD, which should be harmless).

vogl's github wiki is up

Here it is:
https://github.com/ValveSoftware/vogl/wiki
